1-1/16" in 28mm Diameter Aluminium alloy lean pipe, also called the third generation lean pipe.Its surface is smooth with groove design for out and in bond matching to aluminium alloy pipe joint.

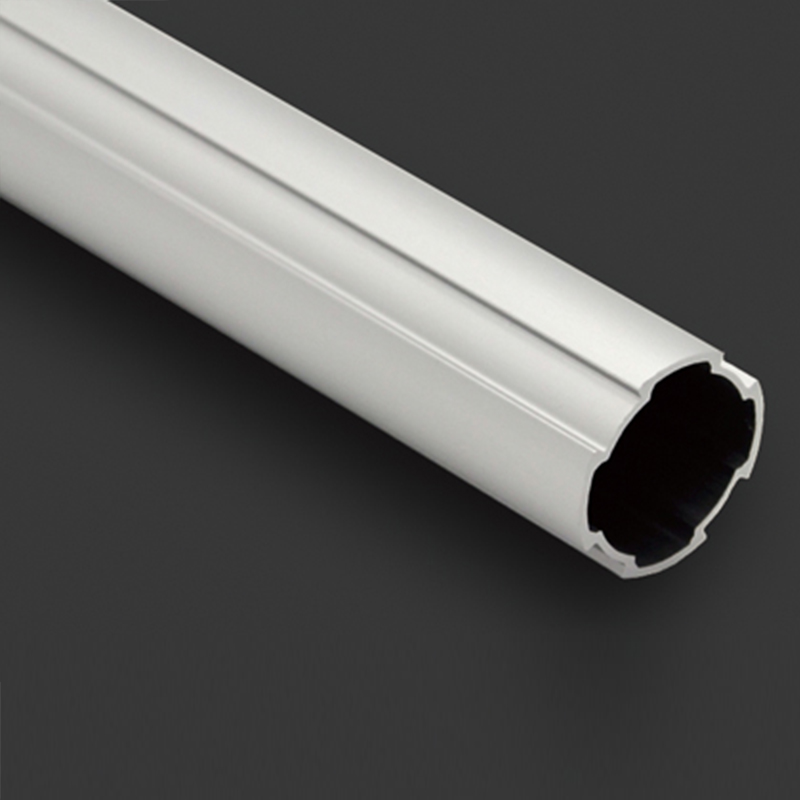

General Frame

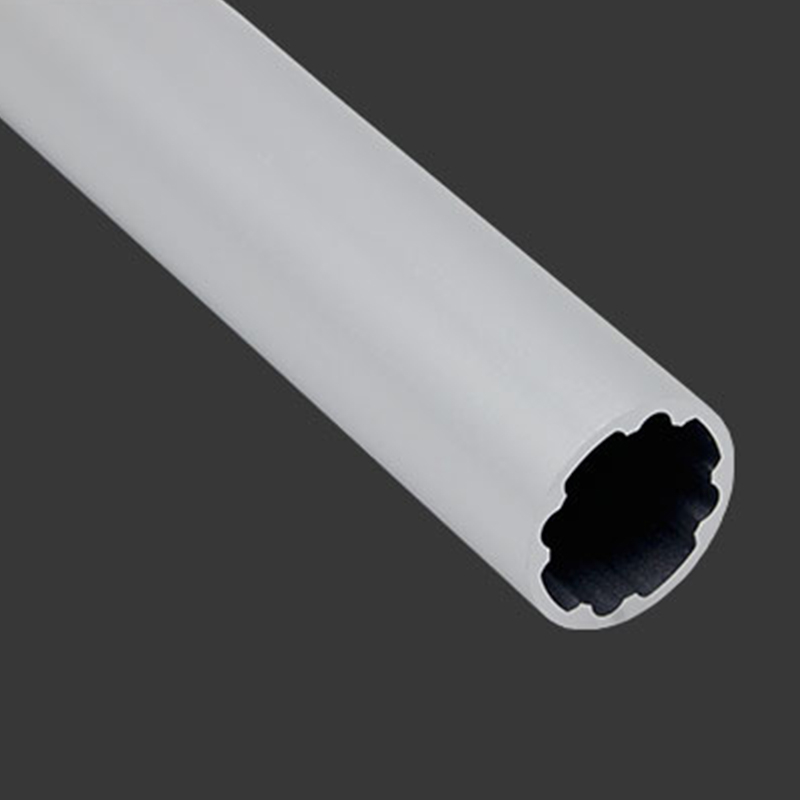

Model: GA28-01A
Thickness: 1.7mm
Net Weight: 400g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
"T" Slot Frame

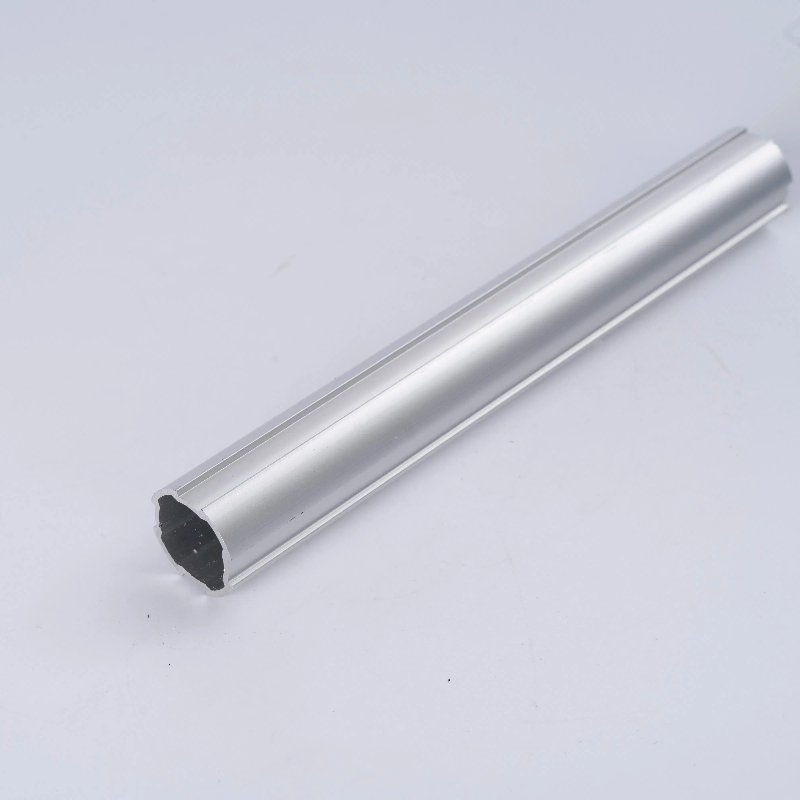

Model: GA28-02A
Net Weight: 640g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
Loaded Frame
Model: GA28-03A
Net Weight: 720g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6

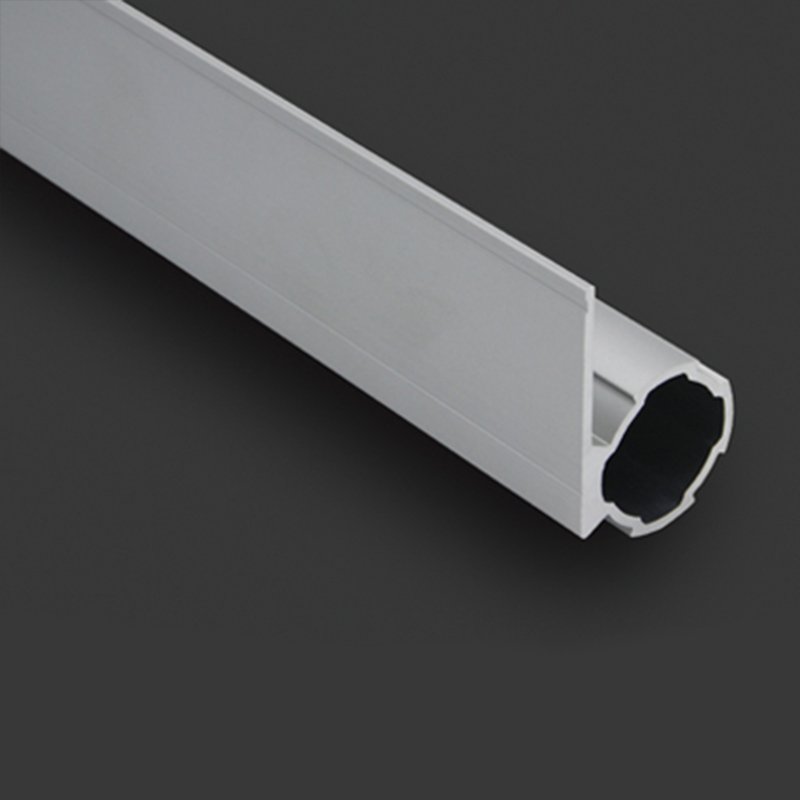

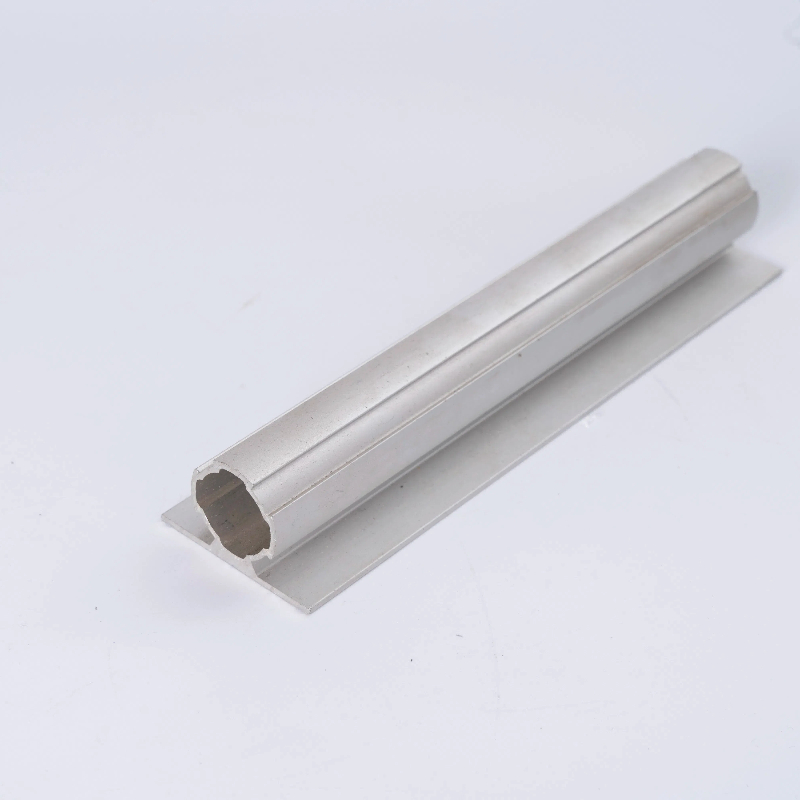

PC Frame (Single Side)
Model: GA28-04A
Net Weight: 660g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
PC Frame (Both Sides)
Model: GA28-05A
Net Weight: 695g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6

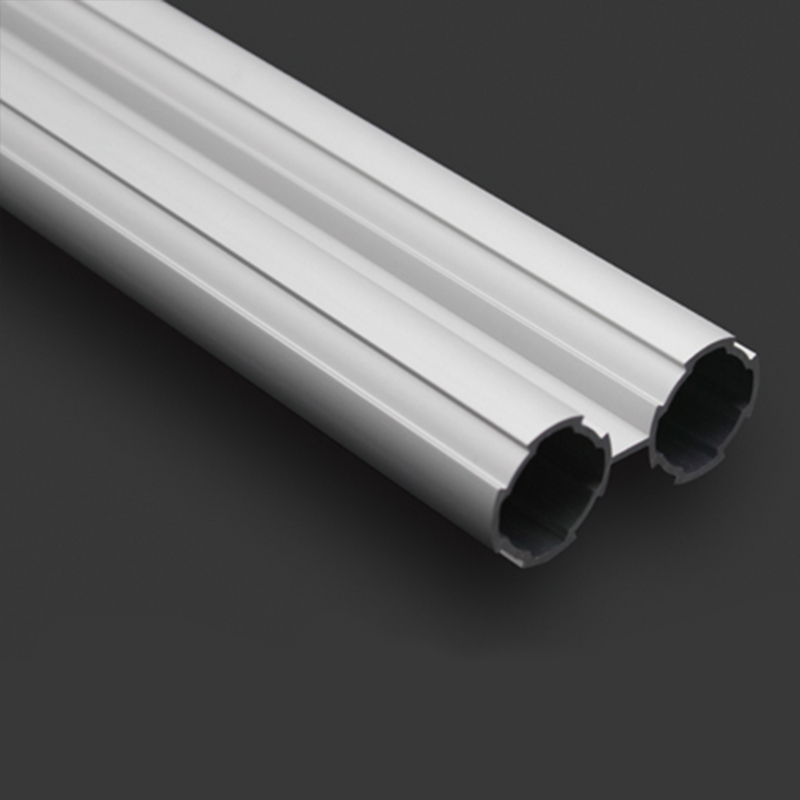

General Frame (Double Pipes) A Type
Model: GA28-06A
Net Weight: 875g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
General Frame (Thinner)
Model: GA28-07A
Thickness:1.2mm
Net Weight: 310g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6

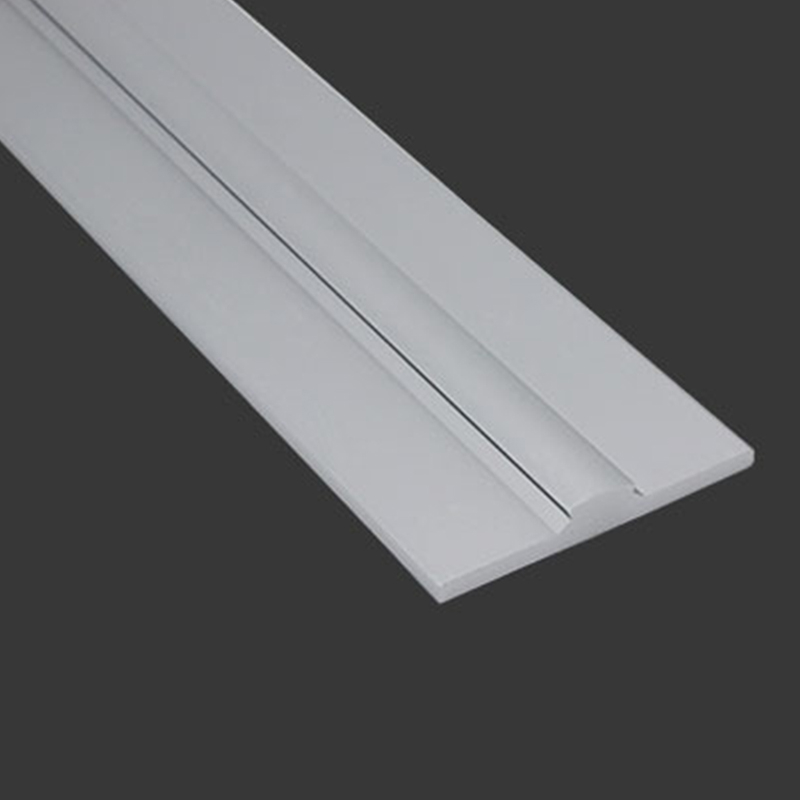

Aluminium Edge Strip
Model: GA28-08A
Net Weight: 840g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6

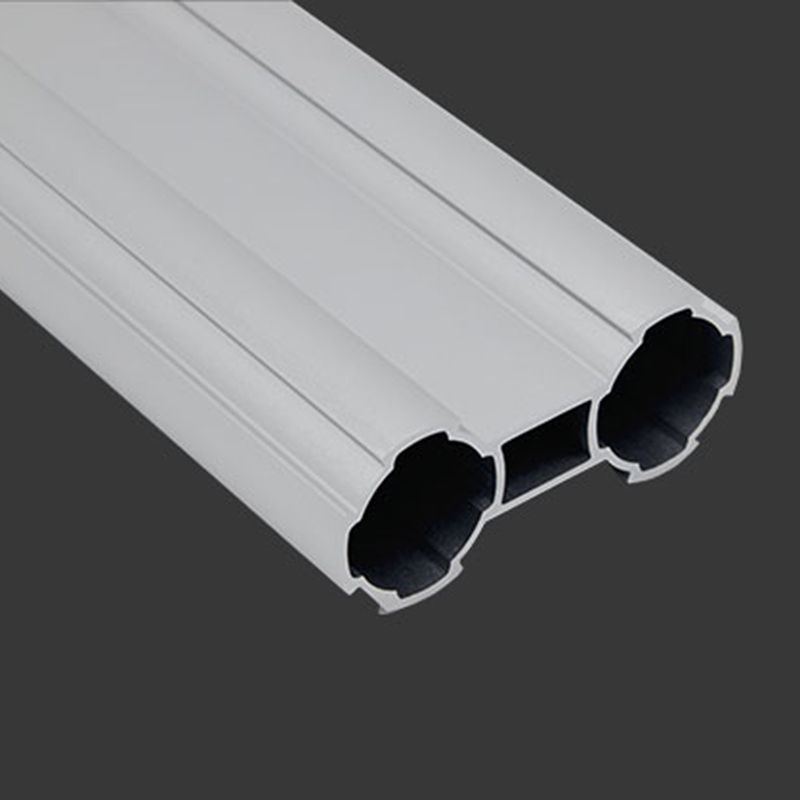

General Frame (Double Pipes) B Type
Model: GA28-09A
Net Weight: 935g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6

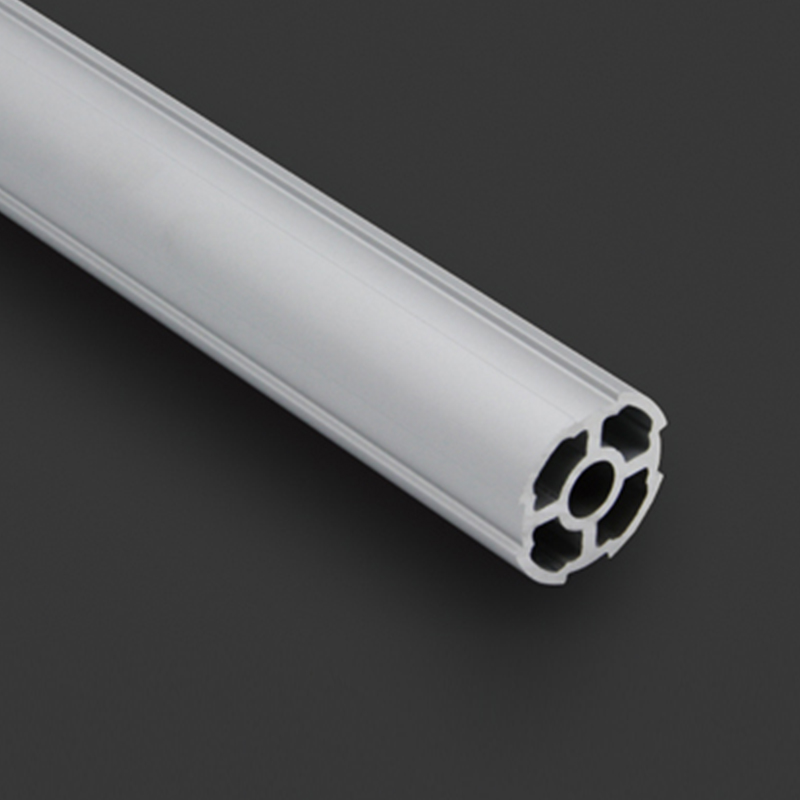

Roll Shaft Frame (Round)
Model: GA28-10A
Net Weight: 515g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
Roll Shaft Frame (Roofing)
Model: GA28-11A
Net Weight: 493g/meter
Standard Length: 4m
Material: Aluminium Alloy 6005T6
